The primary premise of this scheme is to use a single piece of steel that will morph into a variety of sections to cantilever a concrete mass that will act as a chill out spot for students.
The concrete is formed to create the platform, stair, guardrail and seating. Currently it is approximately 183 cubic feet of concrete that equates to 27,540 pounds.
The beam transitions from various types of stand extruded steel sections using the wide flange as the initial starting point.
The Prototype takes a part of this system to fabricate using aluminum plate. The plate is laser cut, bent and welded to form the transition from flange to triangle section.
Mat Lab 2.0 Documentation

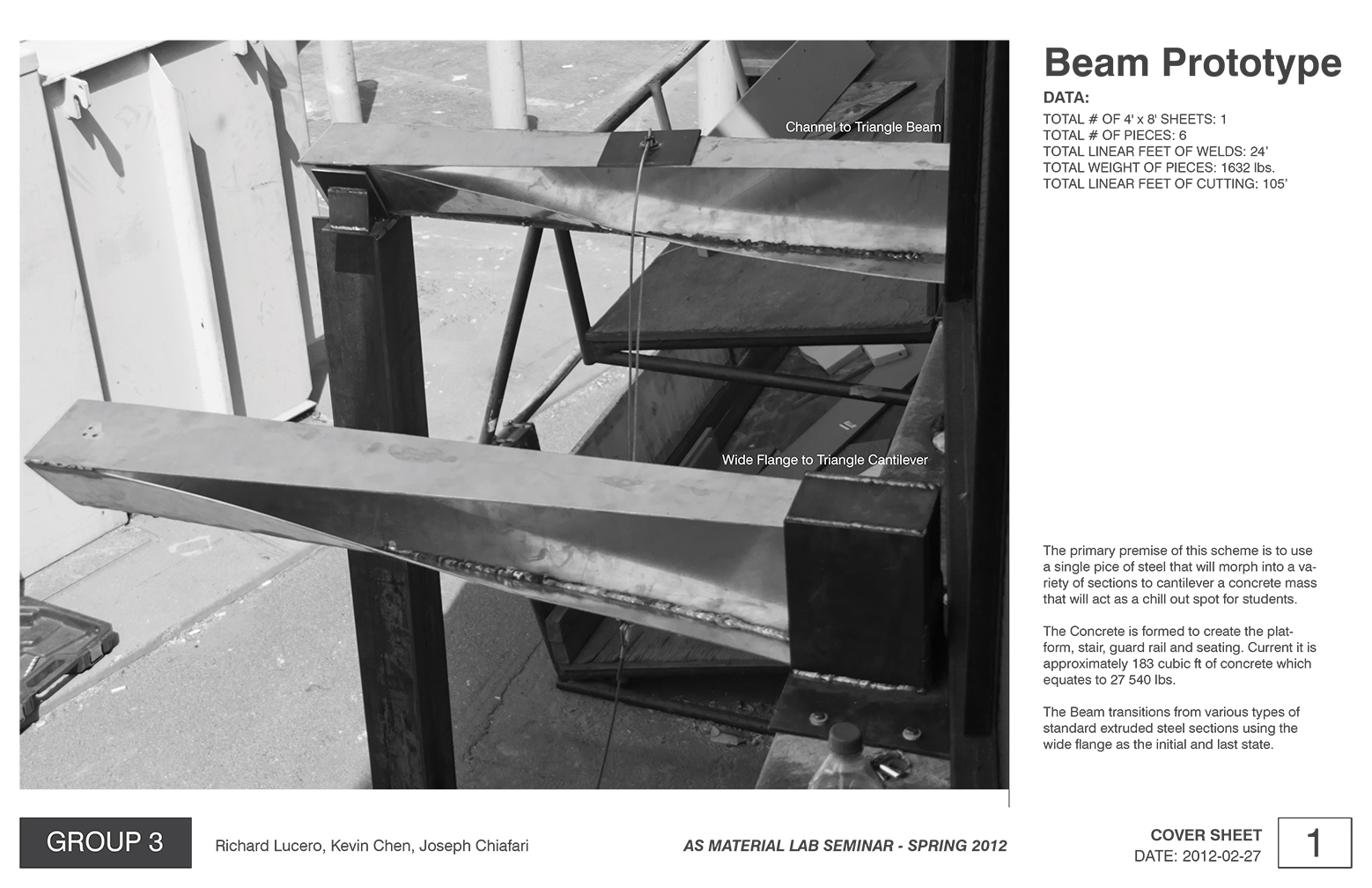

![Cover](https://freight.cargo.site/t/original/i/852b7d98a01e5c5532d31f4c8dd15880cc4f5b658a9349fe7c99f8c3ab2f11ea/Prototype 1_o.jpg)

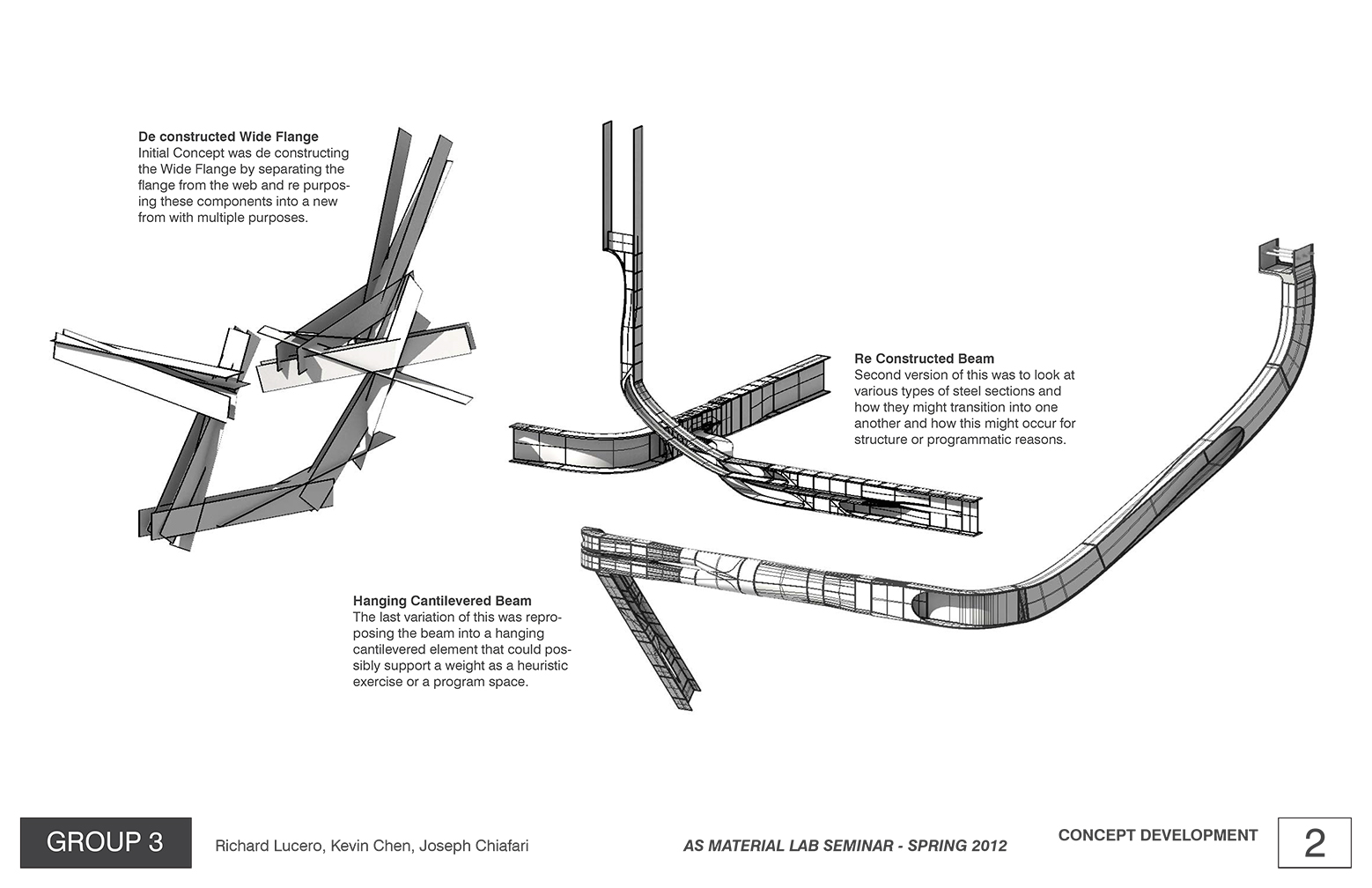

![Concept Development](https://freight.cargo.site/t/original/i/19ea4f20322bae692159af6c6f4dbdd73144565c7d2cd97ccdeaaa5248743c75/Prototype 2_o.jpg)
![Concept Development Plan + Elevations](https://freight.cargo.site/t/original/i/1de15764ab6e0ca43c9061755b685162c0f7d49b7d484bbc9d8a3e8d5d3103b9/Prototype 3_o.jpg)

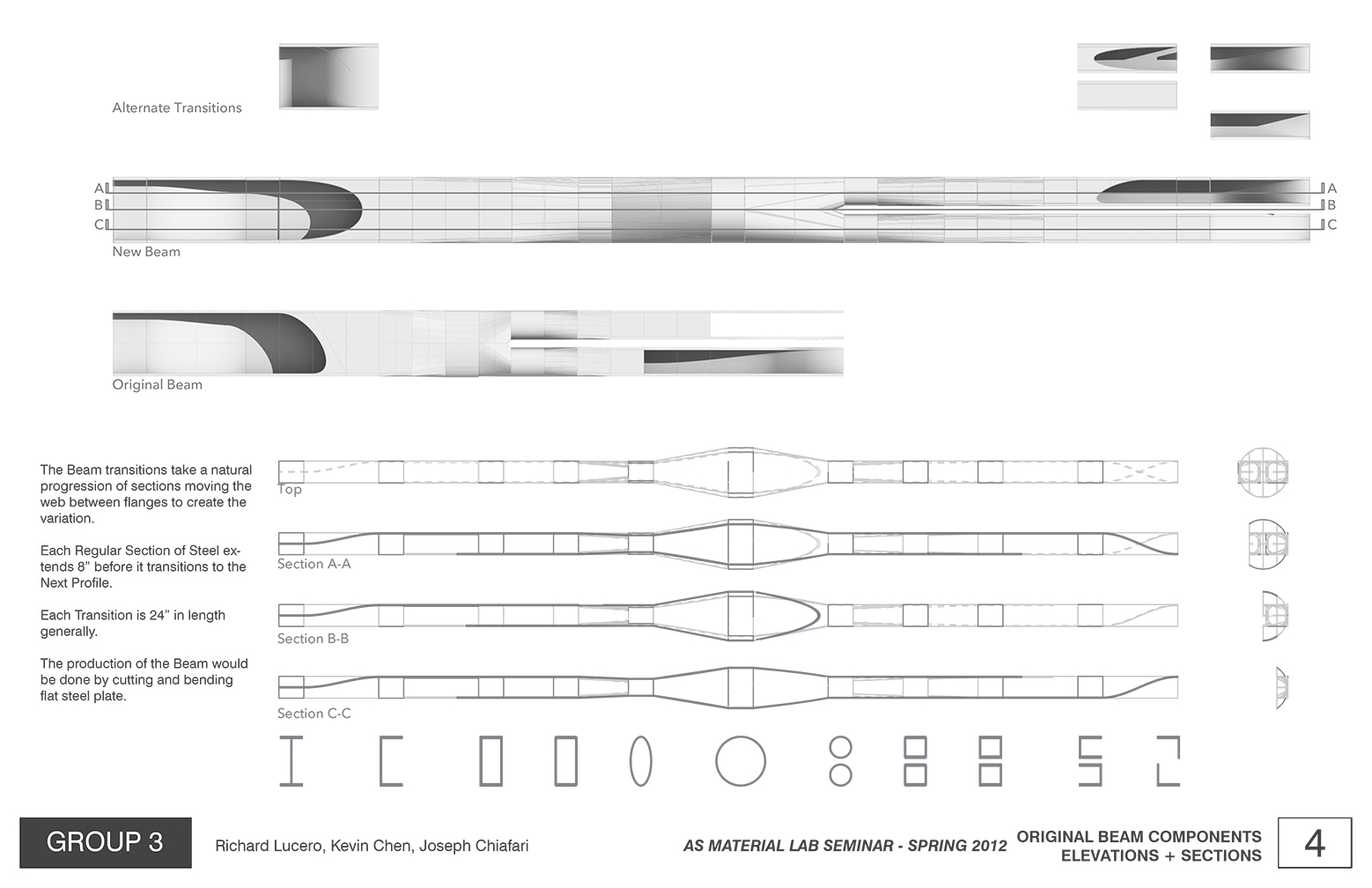

![Original Beam Components](https://freight.cargo.site/t/original/i/13bc28d30ae55a3a293fd6c10b28317669509653676b92928dbe2f0b2c17c928/Prototype 4_o.jpg)

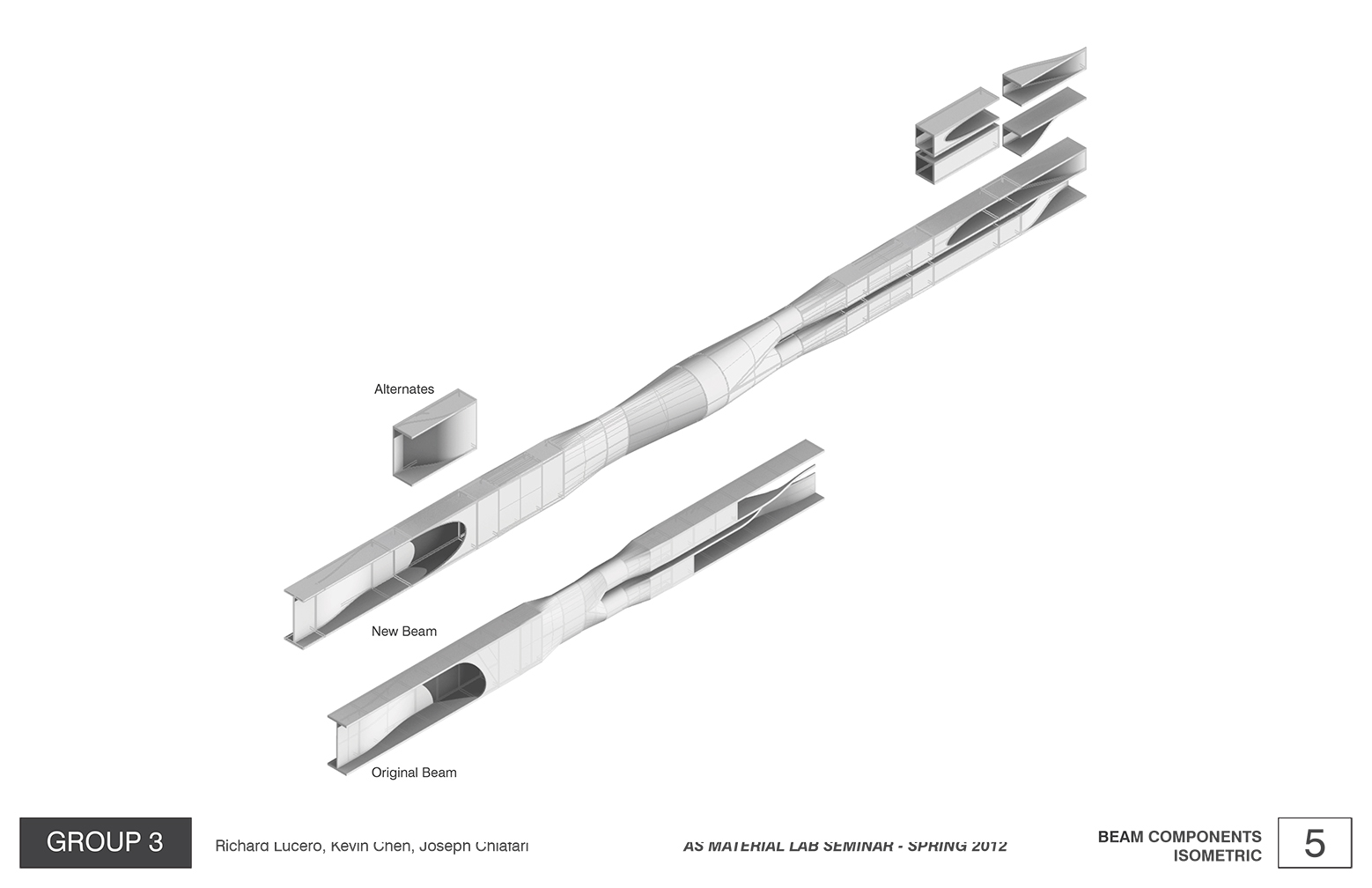

![Beam Component Isometric](https://freight.cargo.site/t/original/i/b8c81b9bf6e9bdd6d943101a911dc6c1ccf2cc5f90e01ac6c59af5fc8c73bada/Prototype 5_o.jpg)

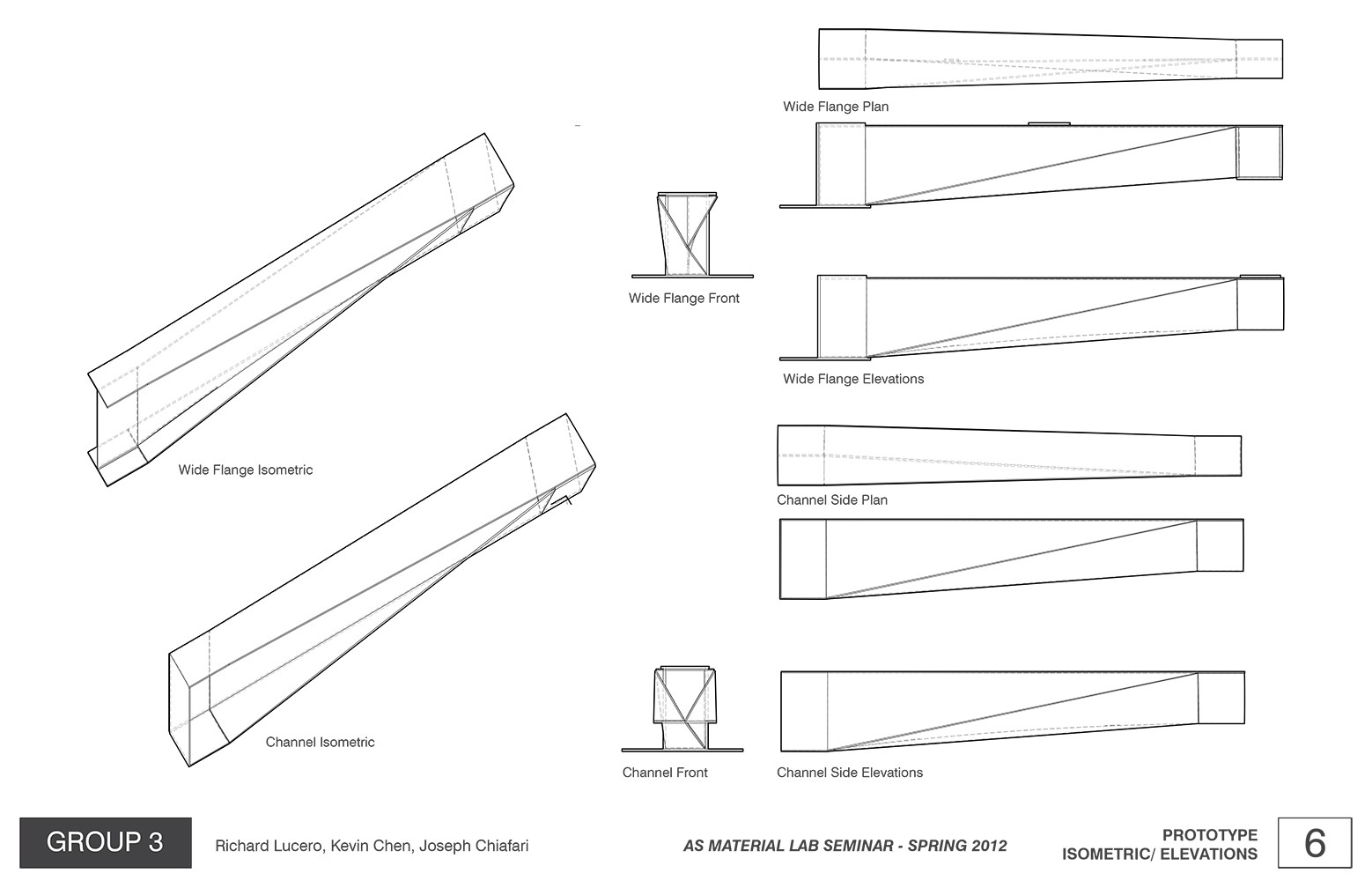

![Prototype Isometric + Elevations](https://freight.cargo.site/t/original/i/cd81e19ba3fde7b705cb1cdf00217946079938bfaf5a98fe60330b977ae8fd9d/Prototype 6_6_o.jpg)

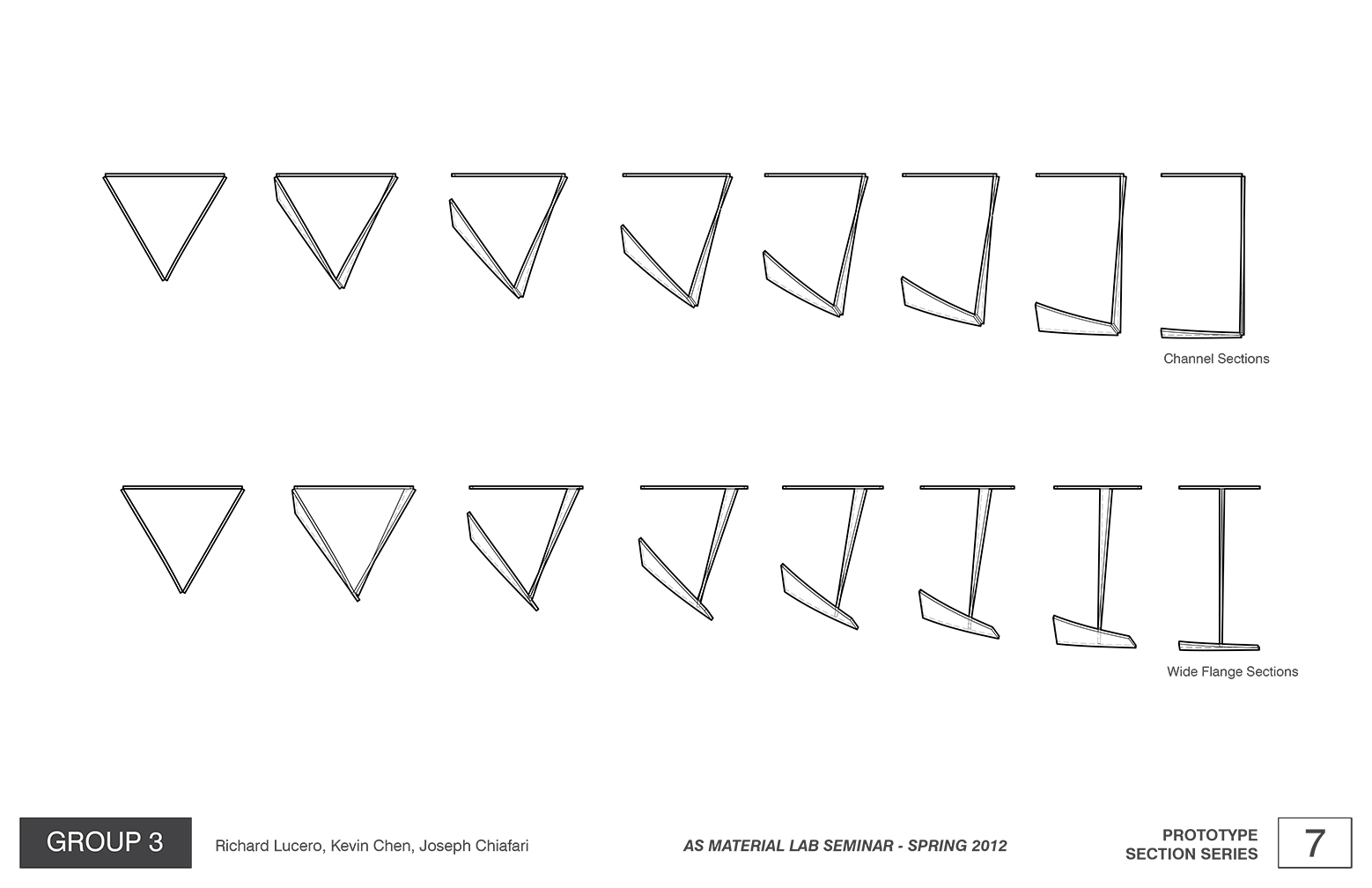

![Prototype Section Series](https://freight.cargo.site/t/original/i/7ee99aab8370af6fea8108f545a890fa35761c5916d4dbec02e4ddad2d825965/Prototype 7_o.jpg)
![Prototype Cut Sheet](https://freight.cargo.site/t/original/i/7aab276c7a221b7dce029a6edbb017e28b783554abb71b27cb04794a32d5b3b1/Prototype 8_o.jpg)
![Prototype Assembly](https://freight.cargo.site/t/original/i/0fe64daa7d08b576751112be401507421d951d32dd6c6a6f20f996b56ac7d041/Prototype 9_o.jpg)

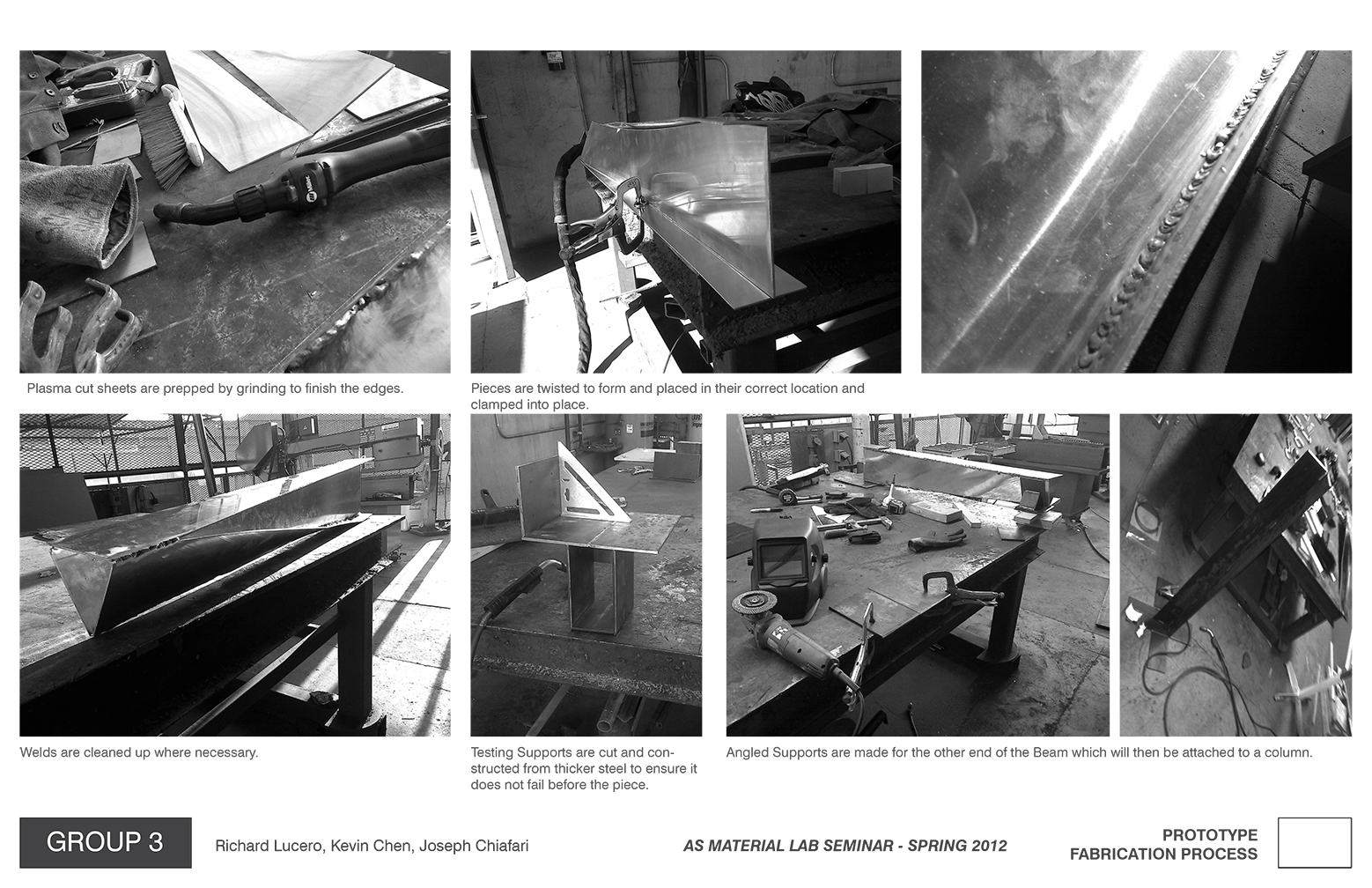

![Prototype Fabrication Process](https://freight.cargo.site/t/original/i/f8c52b7aaeced79145746594b6dffea85cfbc2740feb21483a90b8eb60509c48/Prototype 10_o.jpg)

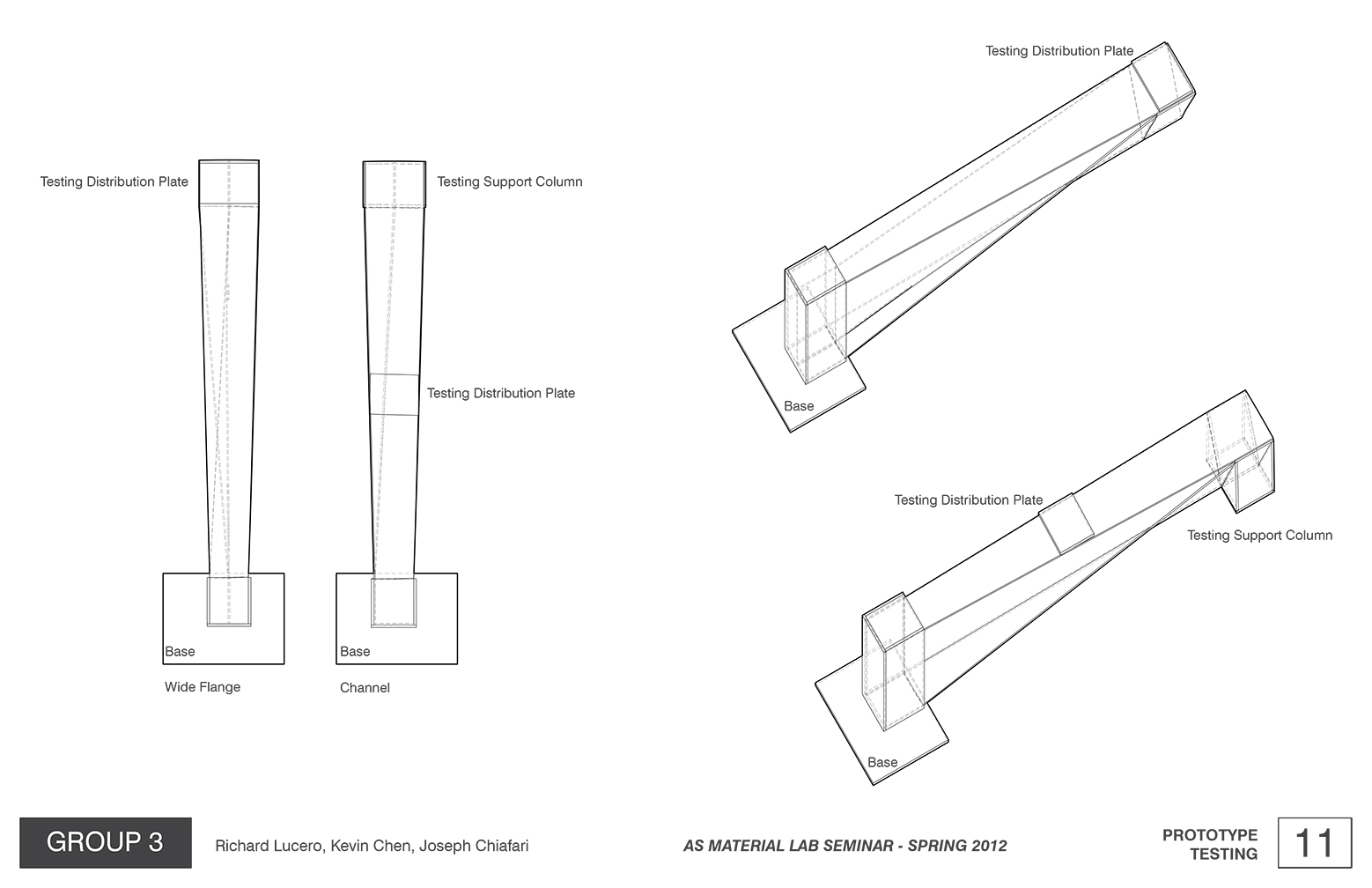

![Prototype Testing](https://freight.cargo.site/t/original/i/4a57a1b73a6f6e183dc5745514b3979e1da7fb712dbbebabe83da5799476790c/Prototype 11_o.jpg)
![Cantilever Testing Rig](https://freight.cargo.site/t/original/i/19d109c01f17c6be71121584c6f73168a760b790337b9459e2eba8eec058d41e/Prototype 12_o.jpg)
![Cantilever Testing Result](https://freight.cargo.site/t/original/i/174a9b266db44b74eabed8b0ebd54554fa9a7b387a48df826c6215868198090e/Prototype 13_o.jpg)

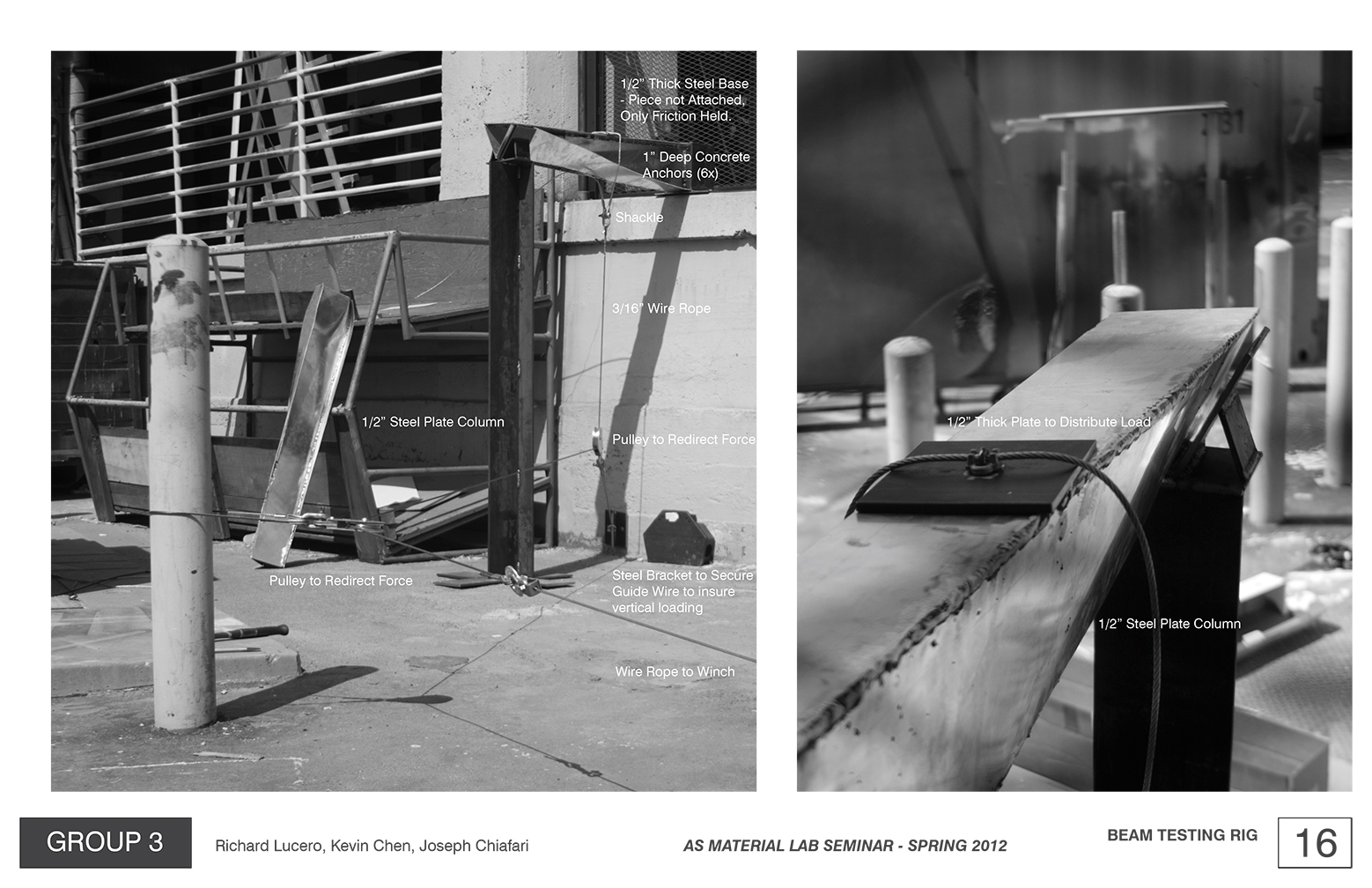

![Beam Testing Rig](https://freight.cargo.site/t/original/i/0937c5c743fc90f5831f03e4aaffecefb694736f3bdc8b47a653478e30ed0a07/Prototype 14_o.jpg)
![Beam Testing Result](https://freight.cargo.site/t/original/i/d93601ed7d577601c4afdb932c6873154e9138012b4bf8037a9655245b1b04d5/Prototype 15_o.jpg)
![Ansys Analysis](https://freight.cargo.site/t/original/i/af4f76ff32aa9a22c9d64a493ed4fb3c88f389446ed4982b905553918838e634/Prototype 16_o.jpg)
