The last material lab without anything being built this time around it was super exciting with the possibility of the project becoming a permanent structure in SCI-Arc.
The semester started with a simple idea of taking a standard wide flange and de constructing it. It evolved to a reconstructed wide flange that would become a beam that would transition from various standard steel sections into one another and this would compliment its movement and load.
Chill Out Beam was a heuristic project that used a concrete mass, doubling as an chill out space, would demonstrate visual its weight and the forces it exerts on the beam as it hangs acting as a cantilever.
For many reasons nothing will be built permanently. A piece of the beam was fabricated in aluminum and tested to failure. The beam was incredibly strong and as a cantilever its webbing deformed until it fell out of the rig.
Drawing Package
![Perspective + The Numbers](https://freight.cargo.site/t/original/i/2efe324191242db637385dbaa22131a3b0431a5255837b0f0fb28134d6a3a1bf/Chill Out Beam V9 1_o.jpg)

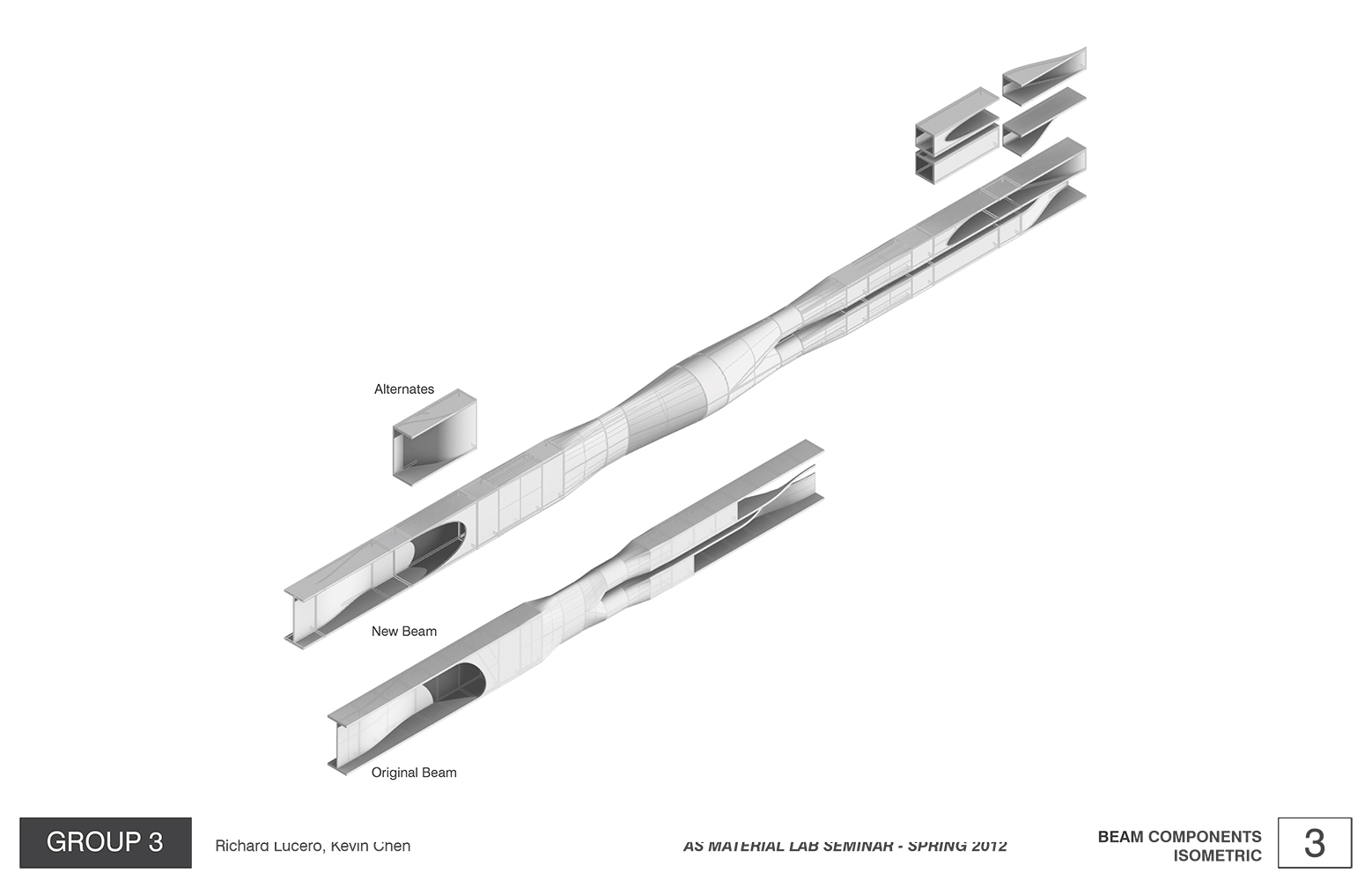

![Beam Components](https://freight.cargo.site/t/original/i/fa2f98341057c4c8739cd111caee68bc5ef846ce3a50a32f864016b4ac648cbf/Chill Out Beam V9 2_o.jpg)
![Beam Isometric](https://freight.cargo.site/t/original/i/29fb1d174ff9fe79e854b1e13f6a6e4a8de6dcaeee73dd0a5a87f469811ec611/Chill Out Beam V9 3_o.jpg)
![Chill Out Beam Assembly](https://freight.cargo.site/t/original/i/66441f6b63541e25bdb6e26717288883089598a714b216a485a9b2cf07372e22/Chill Out Beam V9 4_o.jpg)
![Plan](https://freight.cargo.site/t/original/i/cad865bc408398f0eafeddd6a33b6b850ce44321a7b565967ef094f46dce2eef/Chill Out Beam V9 5_o.jpg)

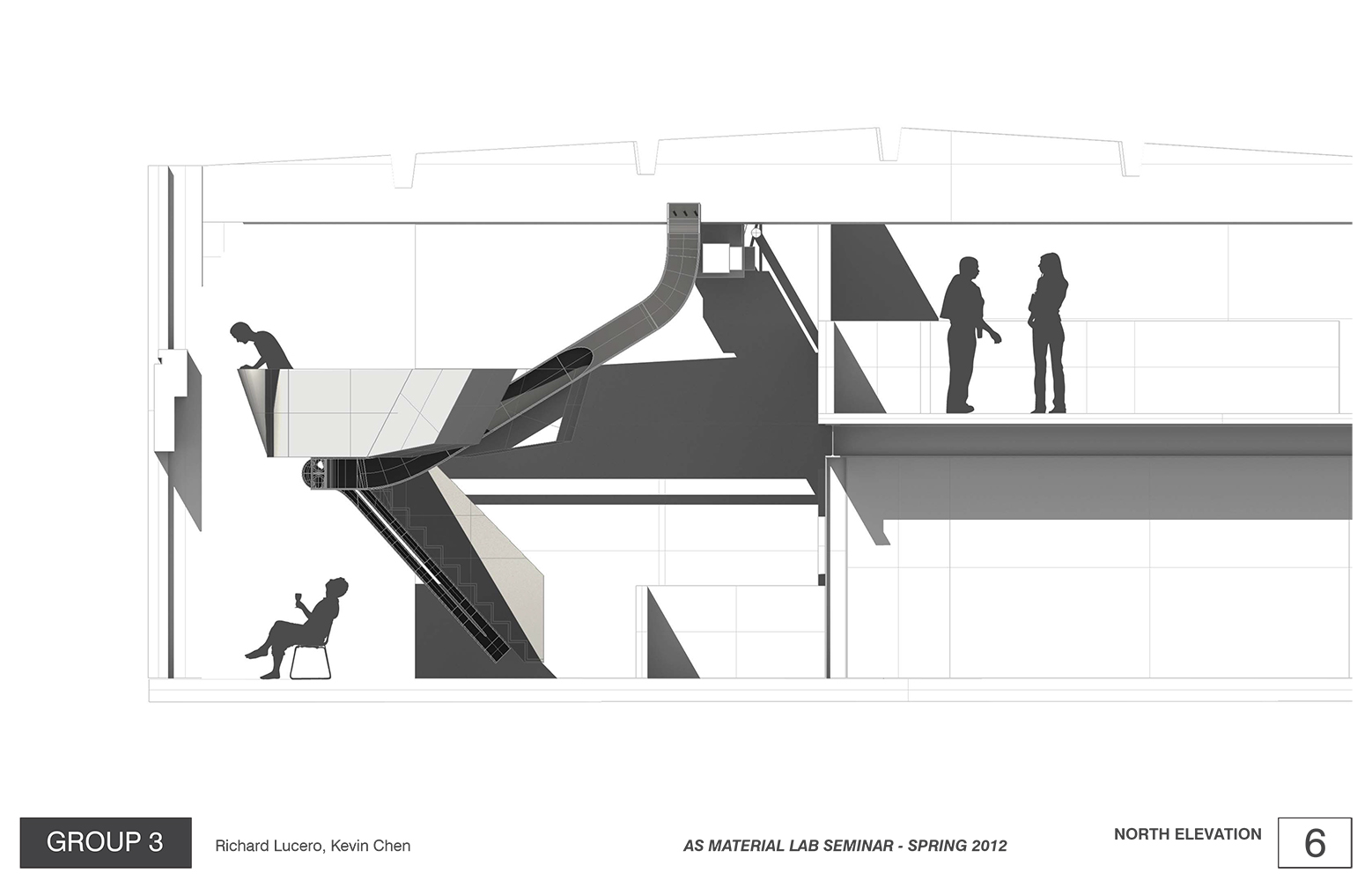

![North Elevation](https://freight.cargo.site/t/original/i/c4418fc59e0a1d21d0f437a18fd7e703c94816303064b7d8d9d07ad6577d0d50/Chill Out Beam V9 6_o.jpg)
![East Elevation](https://freight.cargo.site/t/original/i/53f62a3e60e35924357586df78964506a3e5fbea9b1fa350e5386389004953c7/Chill Out Beam V9 7_o.jpg)

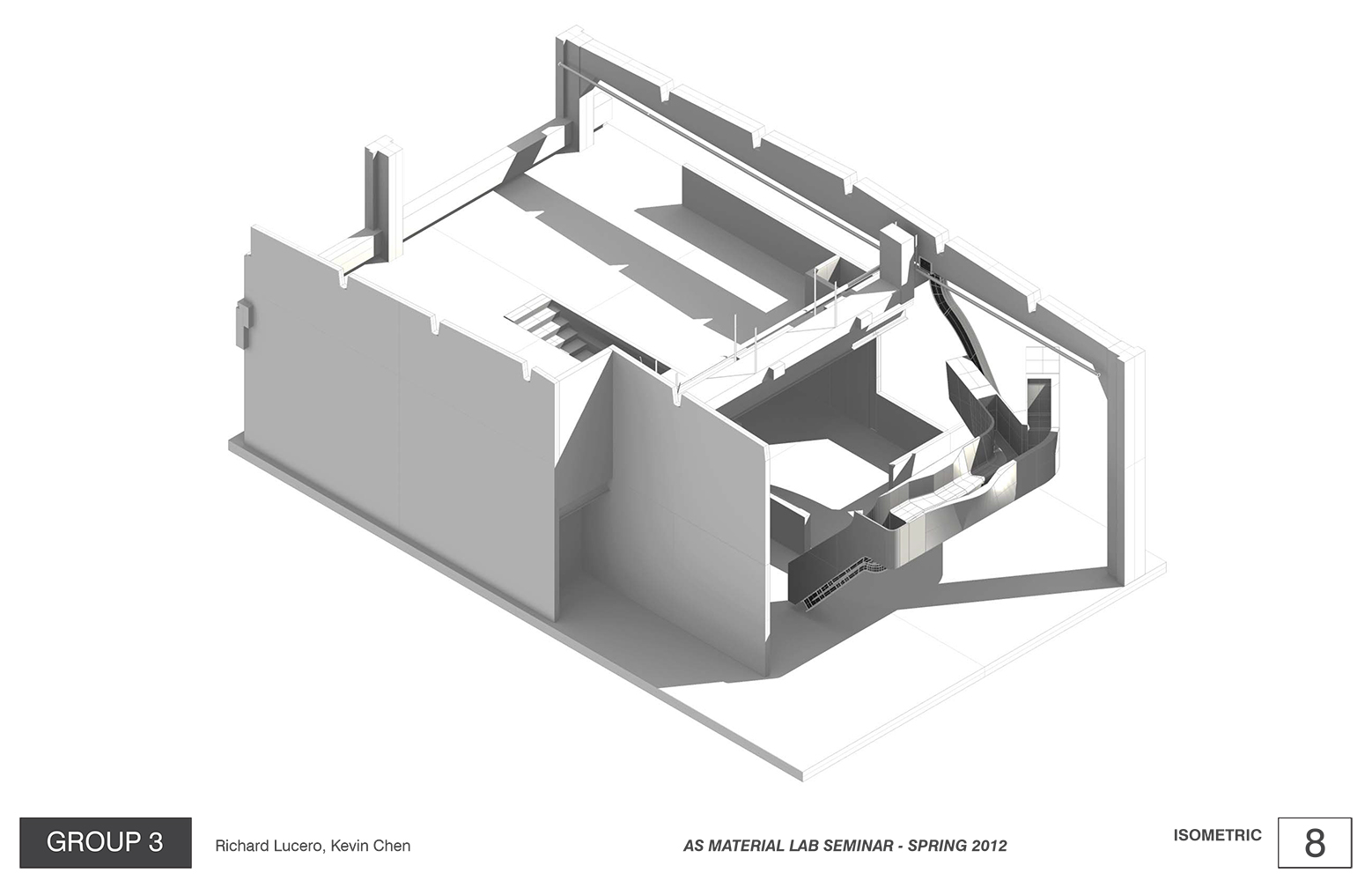

![Isometric](https://freight.cargo.site/t/original/i/276b9850c5c7d160509b902d5409c46814a8dcf3503b5a35d62dd7a8cbb33337/Chill Out Beam V9 8_o.jpg)
![Low Front Perspective](https://freight.cargo.site/t/original/i/8b70f13a2ff5c192799517f3dfcb0f28a07359adc2946952c1554af905f498c8/Chill Out Beam V9 9_o.jpg)
![High Interior Perspective](https://freight.cargo.site/t/original/i/79a52eb674398be6a9d086b29e5f9bebb559d5ba9550d47df2137ecdefba7095/Chill Out Beam V9 10_o.jpg)
![Sitting Perspective](https://freight.cargo.site/t/original/i/c6a7c70aa6b5c191c9810144f751c52f5a6d2a24553d57a3404b35e1601641fc/Chill Out Beam V9 11_o.jpg)
